NXA Ultimate



ITEM # P-0253

Alignment applications plus geometric measurement make this the ultimate measurement instrument.

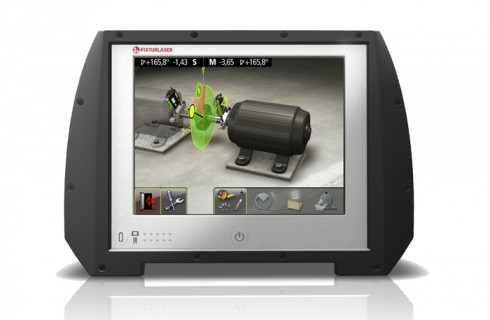

The combination of alignment and geometric routines allows the user to address many of the root causes of outages as part of a complete preventive maintenance program. With a wide range of applications, a screen interface featuring animated 3-D images and a large color touch screen (6.5″) the NXA Ultimate is remarkably user friendly.


  • Largest range of alignment plus geometric applications
  • Geometric routines for straightness (includes bore) and flatness (circular & rectangular)
  • Flatness routine compliant with Ariel ER-82 specification and worksheet
  • Pair up to 5 different sensors as required
  • Built-in, customizable PDF reporting
  • Intuitive interface
  • Large touch screen
  • Color coded results
  • Improved 3D animations with video game quality graphics
  • MEMS gyroscope built-in to both sensors and the display unit
  • Large 30 millimeter 2nd generation scientific grade CCD sensors
  • Wireless Bluetooth® II built-in to small form factor sensors
  • Lifetime warranty


Horizontal Machines
The NXA Ultimate is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process. The benefit of this “true positon sensing” is that it allows the user to complete the alignment using the Verti-Zontal™ compound move, adjusting in both the vertical and horizontal planes without remeasuring between moves. A Verti-Zontal™ alignment is a great time saver since alignments can be completed in just one or two tries. The NXA Ultimate also comes with a number of utility programs to make the alignment process easier. These include Softcheck™ to control for soft foot conditions, FeetLock™ to deal with base and bolt bound situations, HotCheck™ to calculate the difference between measurements taken in a cold state versus a hot condition, and Target Values, which automatically adjusts the readings to compensate for pre-determined alignment targets based on thermal growth or dynamic movement data.
Vertical Machines
Machine Train
Circular Flatness
Rectangular Flatness
Rectangular Flatness


Soft Check
This program calculates the appropriate target values for an alignment based on the machine’s hot condition and ambient condition. The utility retrieves two saved shaft alignment measurements — one in the machine’s cold, or ambient condition and one in the hot condition — and then calculates the appropriate target values. Those values can be used the next time to ensure proper alignment at running conditions.
Target Values
Memory Manager
Machine Defined Data
Omniview Activation
Adjustable Screen Filter
Sampling Time

What’s Included

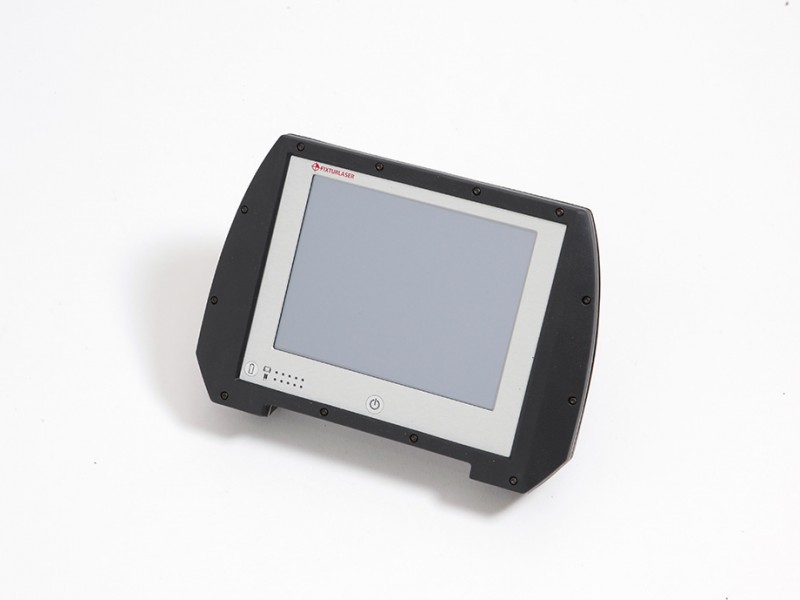

Full VGA 6.5″ color display, TFT-LCD backlit, sunlight readable, with wide angle viewing technology.

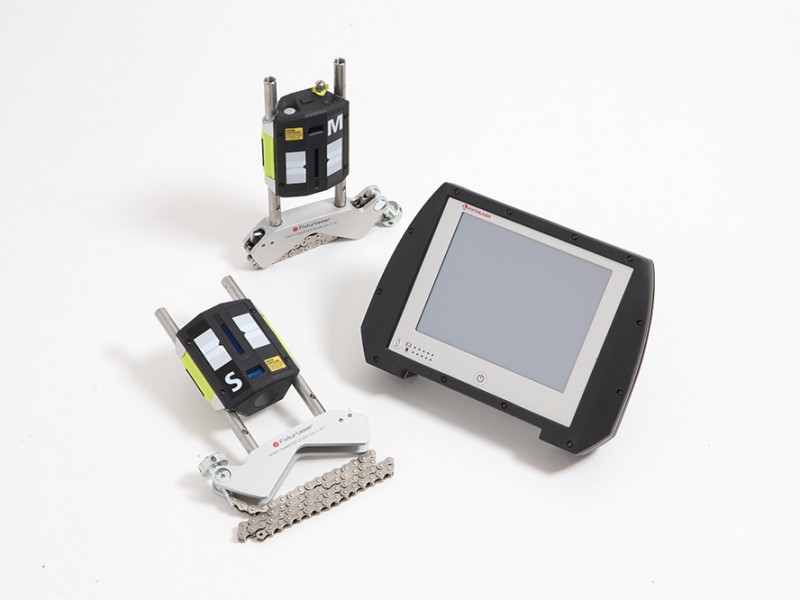

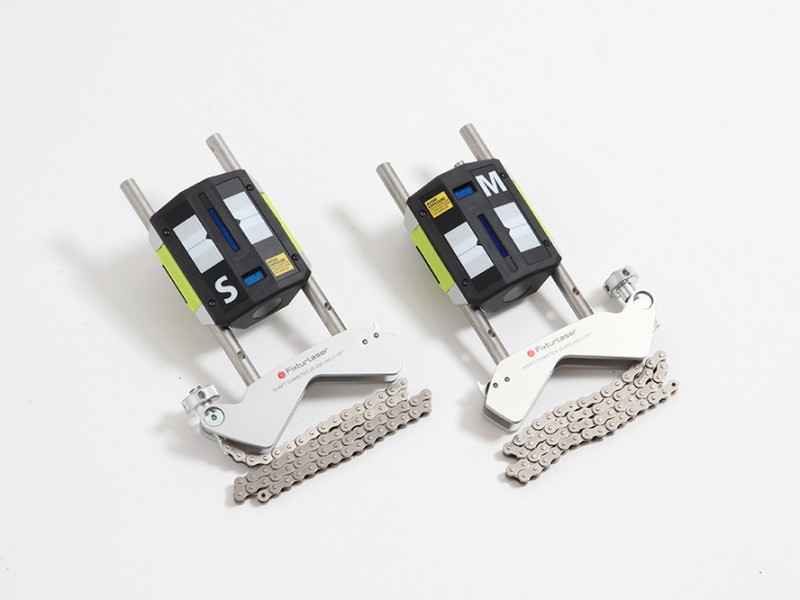

  • M3 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
  • S3 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
  • NXA V brackets, including 4-150mm rods and 2-470mm chains
  • Two 970mm extension chains
  • Rod extension kit, 4-100mm
  • Two 150mm rods
  • 49mm offset bracket
  • NXA extension fixture
  • Angled Universal Rod tools (2)
  • Magnetic base for mounting on large diameter shafts
  • Magnetic V-brackets (2) for applications where chain brackets won’t fit
  • External power supply NXA built into carrying case
  • T21 laser transmitter for flatness applications, includes mounting kit
  • RM (Movable Receiver) laser receiver with BT-2 Bluetooth
  • Carrying case – IP-65, high impact ABS
  • NXA tape measure
  • USB stick
  • Manuals – NXA (printed and CD) and Geometry (printed and CD)
  • Lifetime warranty standard
