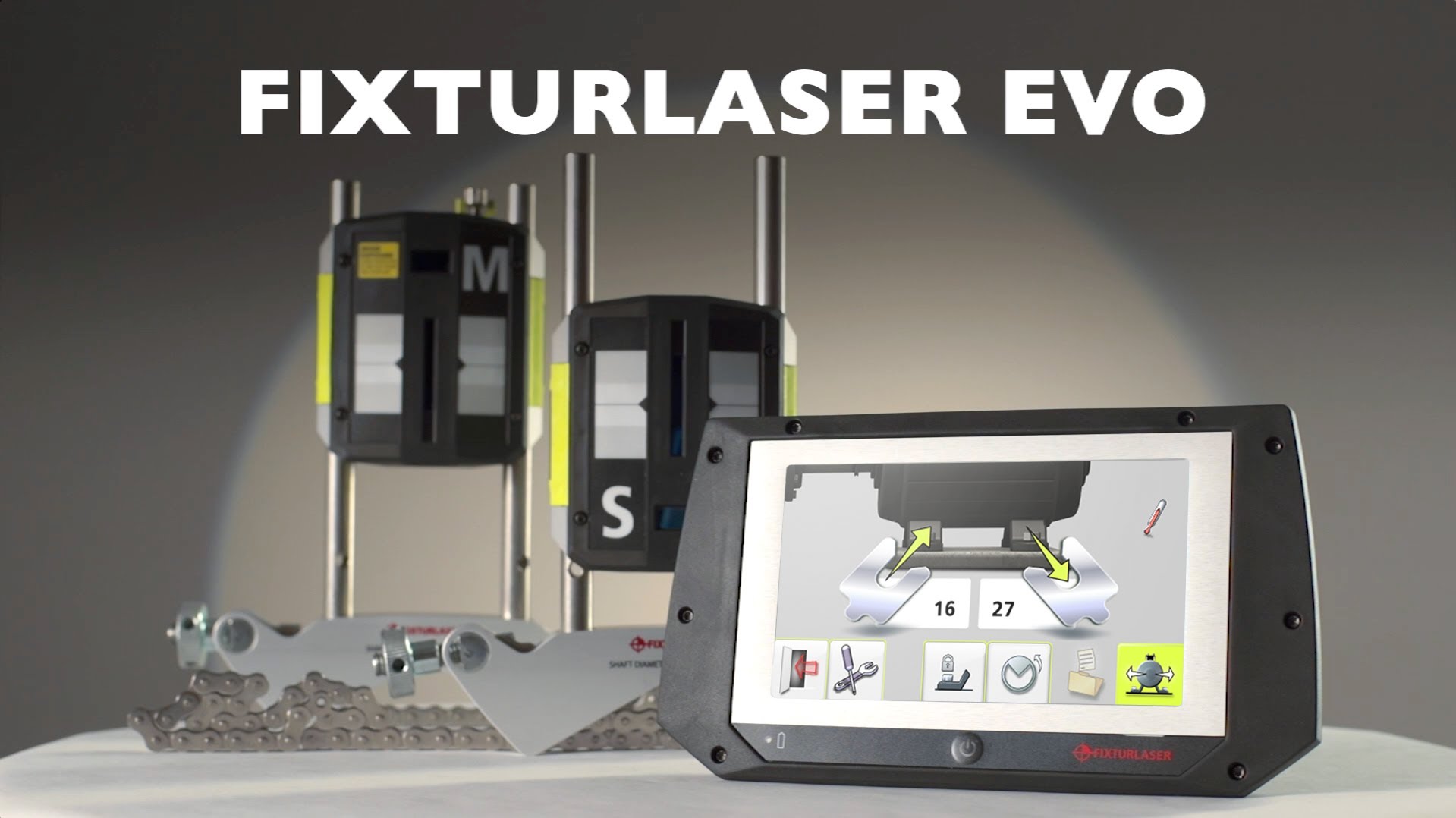

FIXTURLASER EVO
ITEM # P-0256
The evolution of laser shaft alignment towards simplicity and confidence continues with the Fixturlaser EVO.
“Everything should be made as simple as possible, but not simpler.” Albert Einstein
HIGHLIGHTS
- Intuitive interface
- 5" Inch touch screen
- Color coded results
- Improved 3D animations with video game quality graphics
- MEMS gyroscope built-in to both sensors
- Large 30 millimeter 2nd generation scientific grade CCD sensors
- Wireless Bluetooth® II built-in to small compact sensors
- Lifetime warranty
- Winner of 2014 Product of the Year Gold Award from Plant Engineering
Product Video
Applications
Horizontal Machines
The Fixturlaser EVO measures the need for horizontal alignment, but its real power is in helping correct misalignment. The dual sensors allow the EVO to continually read the true position of the shafts, even as uncontrolled movements are experienced during the alignment process. The benefit of this “true position sensing” is that it allows the user to complete the alignment using a Verti-Zontal™ move adjusting in both the vertical and horizontal planes without re-measuring between moves. Alignments can usually be completed in just one or two tries.
Vertical Machines
Utilities
Soft Check
Softcheck™: The Softcheck™ routine helps control for soft foot conditions. The EVO allows the user to go directly from Softcheck™ to measuring shaft alignment.
Feetlock
Target Values
What’s Included

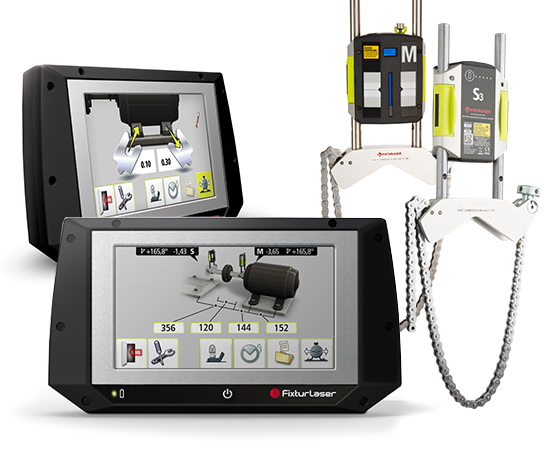

Full VGA 5″ color display, TFT-LCD backlit, sunlight readable, with wide angle viewing technology
- M3 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- S3 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II

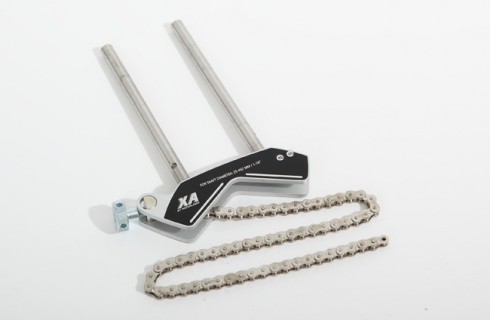

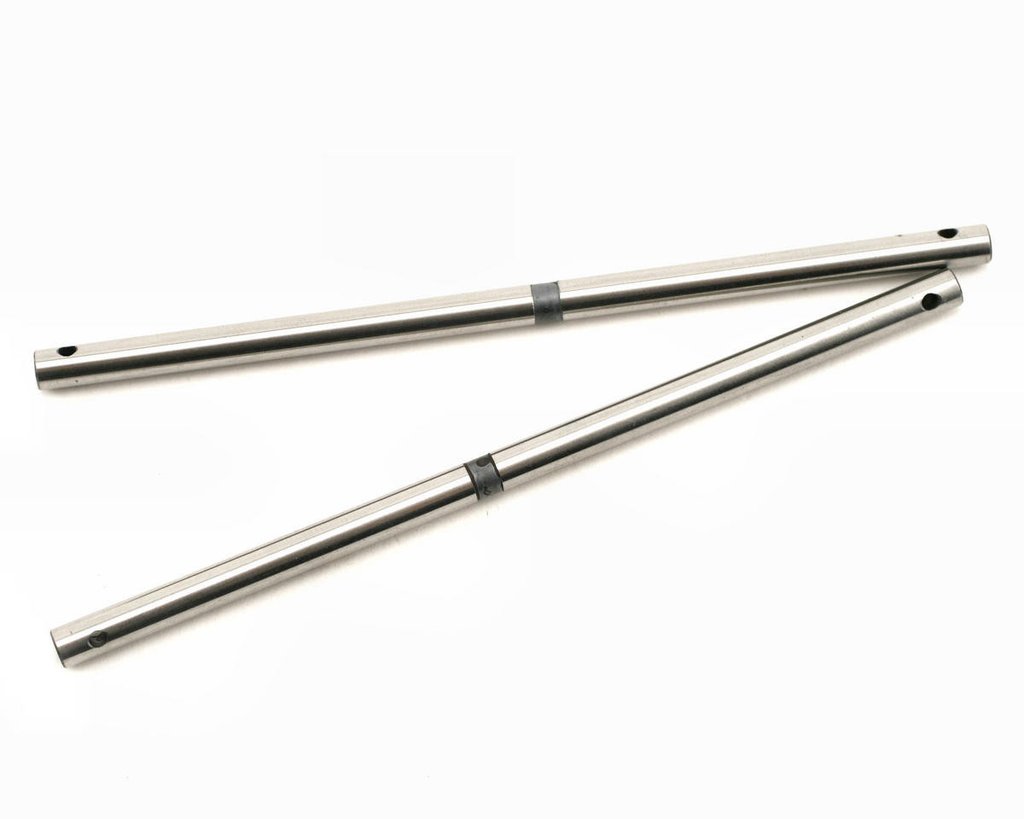

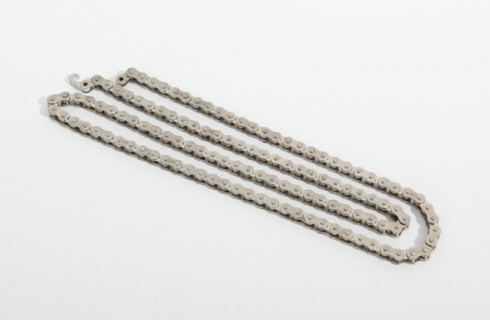

- EVO V brackets, including 4-85mm rods and 2-160mm chains
- External power supply EVO built into carrying case

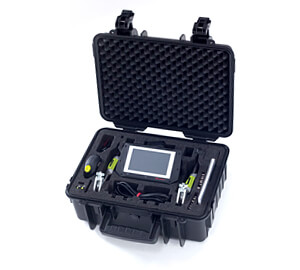

- Carrying case – IP-65, high impact ABS
- EVO tape measure
- USB stick
- Manuals – EVO
- Lifetime warranty standard
