Epoxy Mica Capacitors (EMC Sensor) – Partial Discharge Monitoring
Iris Power Epoxy Mica Capacitors (EMC) are designed to detect Partial Discharge activity in motors, generators, switchgear and isolated phase bus while not imposing on the machine’s operation or reliability in any way.
Iris Power’s 80 pF EMCs are designed to block the 50/60 Hz power frequency and allow only high frequency (>40MHz) signals to pass through, be collected and analyzed by an appropriate Iris Power portable instrument or continuous monitor.
Product Overview
Iris Power Epoxy Mica Capacitors are sensors for monitoring Partial Discharge Across Motors, Generators, Switchgear, Dry Type Transformers and Isolated Phase Bus

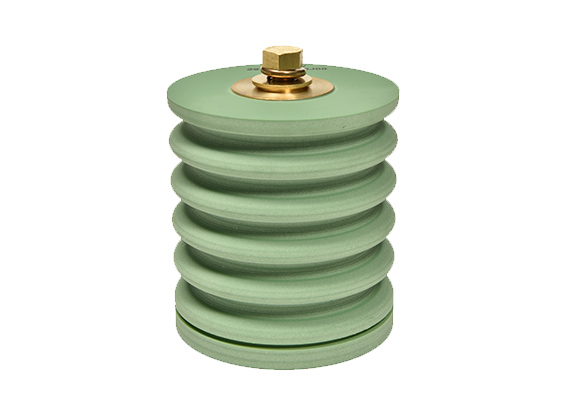

6kV

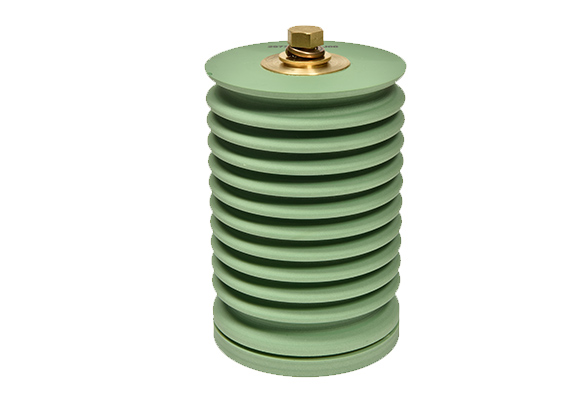

16kV

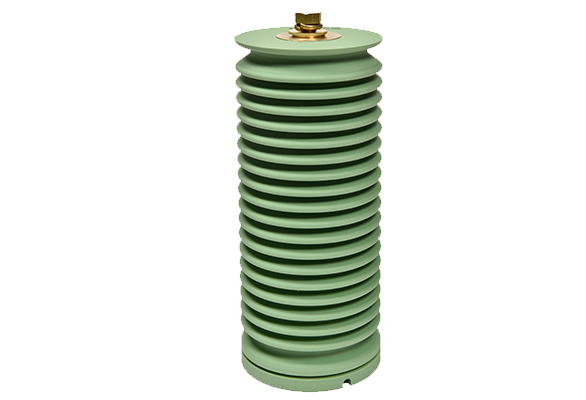

25kV
Applications
Switch Gear
Mica Capacitors can allow for following Condition Monitoring for the Motors;
- Partial Discharge Monitoring
Motors
Mica Capacitors can allow for following Condition Monitoring for the Motors;
- Partial Discharge Monitoring
- Rotor Flux Monitoring (Synchronous Machines)
- Rotor Winding Monitoring - Induction Motors
- End-Winding Vibrations Monitoring
- Shaft Voltage and Current Monitoring
- Motor Offline Testing
Hydro Generator
Following Hydro-Generator Condition Monitoring solutions are available with the help of this product;
- Partial Discharge Monitoring
- Rotor Flux Monitoring
- Mechanical Vibrations Monitoring
- Air Gap Monitoring
- End-Winding Vibration Monitoring
- Offline Testing
Turbine Generator
Following Turbine Generator Condition Monitoring solutions are available with the help of this product;
- Partial Discharge Monitoring
- Rotor Flux Monitoring (Synchronous Machines)
- Mechanical Vibrations Monitoring
- Shaft Voltage & Current Monitoring
- End-Winding Vibration Monitoring
- Offline Testing
Isolated Phase Bus
Following Isolated Phase Bus Monitoring solutions are available with the help of this product;
- Partial Discharge Monitoring
