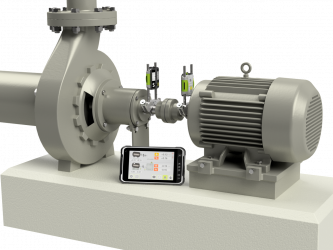

Smart shaft alignment

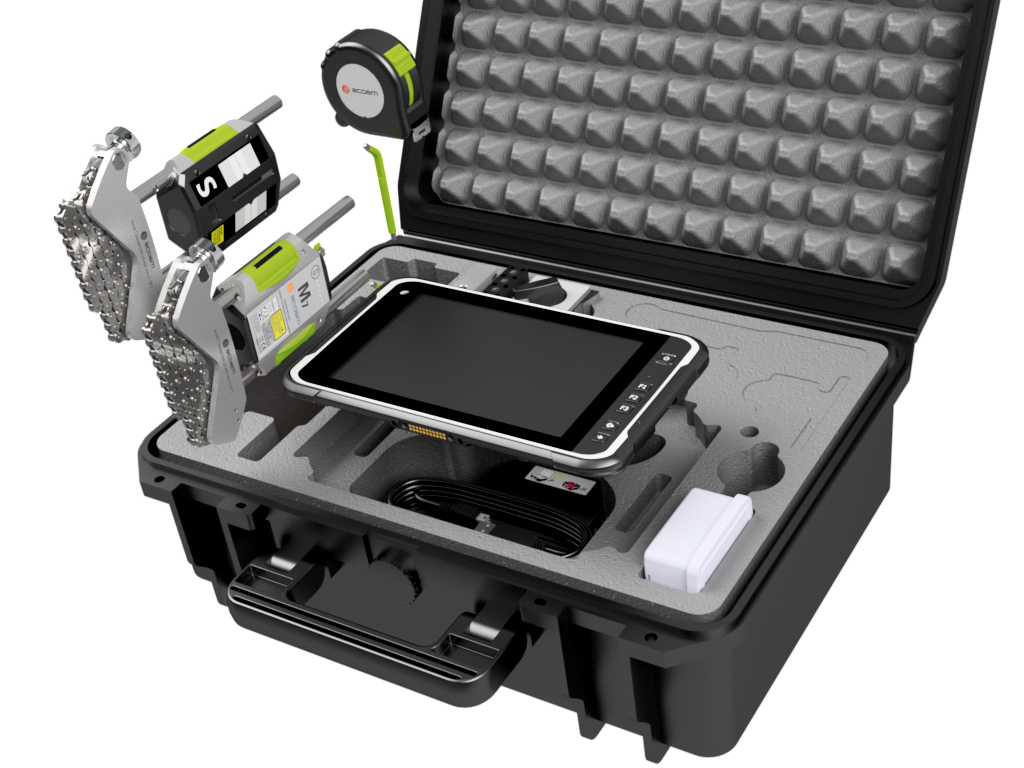

With the AT-200 alignment tool, ACOEM takes alignment into the Industry 4.0 world of performing maintenance!
Smart shaft alignment for smart maintenance
Connectivity, mobile devices, and apps are integrated into the AT-200 making it a tool for short response time between machine failures and corrective actions. The smart sensors use CCD technology for superior measurement performance and precision alignment.

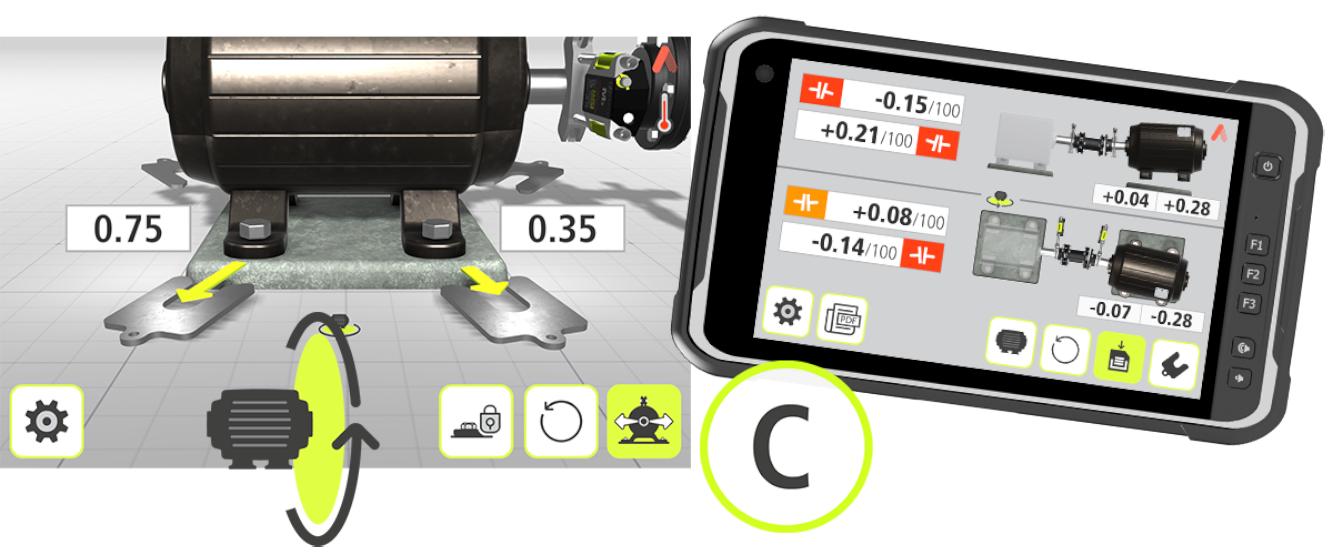

Guideu
The AT-200 is a smart, app-based alignment tool with the patented, adaptive user interface, GuideU, that lends the tool an industry-leading ease-of-use.
True live with smart sensors
No doubts, no guessing games, thanks to the industry-first use of technologies of two smart sensors with visible laser beams and inclinometers monitoring both shaft positions simultaneously.
Did you interrupt the laser beam? Or move the machine’s position out of the detector range? Not a problem, our smart sensors will resume with an updated machine position and always deliver live values to you.
Smart alignment sensor features
- Large 30 mm digital sensor detectors – capacity to handle long measurement distances and large angular misalignment errors
- The 30 mm digital sensor detector combined with a line laser will eliminate rough alignment which results in short setup time
- Thinnest smart sensors on the market
- Built-in dual inclinometers to detect backlash and to obtain angular values during measurement in the horizontal alignment program
- Integrated Bluetooth for wireless communication between the display unit and smart sensors
- Digital signal processing – less sensitive to ambient light, improved side spot rejection and edge detection
- Sunlight-resistant detectors
- Instant battery check, in both on and off mode
- IP65-certified sensor design that can withstand harsh environments
- Premounted fixtures and small sensors provide for quick setup also on machines with limited space
More smart AT-200 features
Feetlock
This function allows you to select which feet are locked and which feet are adjustable. Feet Lock is available both in shimming and alignment.
Target Values
Pre-set target values used in your alignment work when you have to compensate for the machine’s thermal expansion.
PDF report
The PDF report function provides a fast on-site reporting available for converting saved measurement reports into PDF files.
FIXTURLASER EVO
FIXTURLASER NXA PRO
Say hello to a future with the Fixturlaser NXA by your side and a more productive and sustainable production.
Think beyond what you thought was possible within shaft alignment and you will find Fixturlaser NXA. Our new product is a result of refined innovations, true commitment and pure usability.
The laser based shaft alignment system that has more muscles and more power than any other system in the market place.
Fixturlaser SMC
Find The Right Device
Then please get in touch and we'll be glad to help.
