FIXTURLASER NXA PRO
ITEM # P-0248
A revolution in shaft alignment as well as a revolution in usability with the Fixturlaser NXA Pro - a digital laser based shaft alignment system!
SUMMARY
The Fixturlaser NXA Pro aims to provide the user with a fast and simple operation, as well as having access to advanced functions and capabilities, such as the OmniView and the VertiZontal Moves, and probably the best power management system in the market place.
HIGHLIGHTS
- Intuitive interface
- Large touch screen
- Color coded results
- Pair up to 5 different sensors as required
- Built-in, customizable PDF reporting
- Improved 3D animations with video game quality graphics
- MEMS gyroscope built-in to both sensors and the display unit
- Large 30 millimeter 2nd generation scientific grade CCD sensors
- Wireless Bluetooth® II built-in to small form factor sensors
- Lifetime warranty
Product Video
Applications
Horizontal Machines

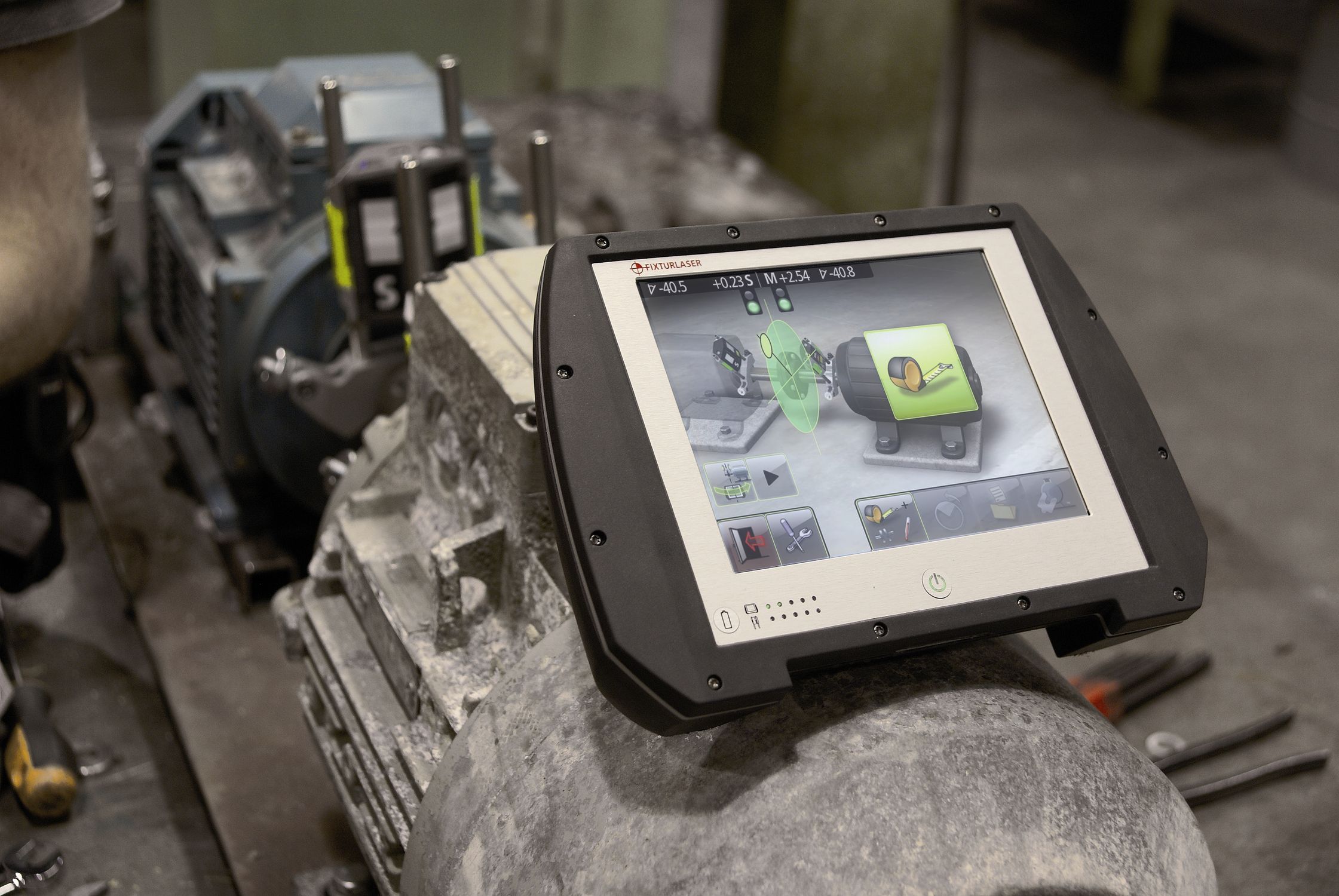

The Fixturlaser NXA Pro is perfect for measuring horizontal alignment conditions but its real power is in helping correct misalignment. The dual sensors allow the NXA Pro to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process.
Vertical Machines
Machine Train
Hotcheck

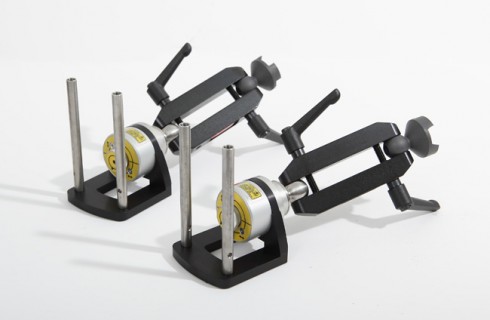

OL2R software
Cardan Shaft software
Utilities
Soft Check
Softcheck™ checks if there is a soft foot condition, i.e. when the motor is not resting firmly on all its feet.
Feetlock
Target Values
Memory Manager
Machine Defined Data
Omniview Activation

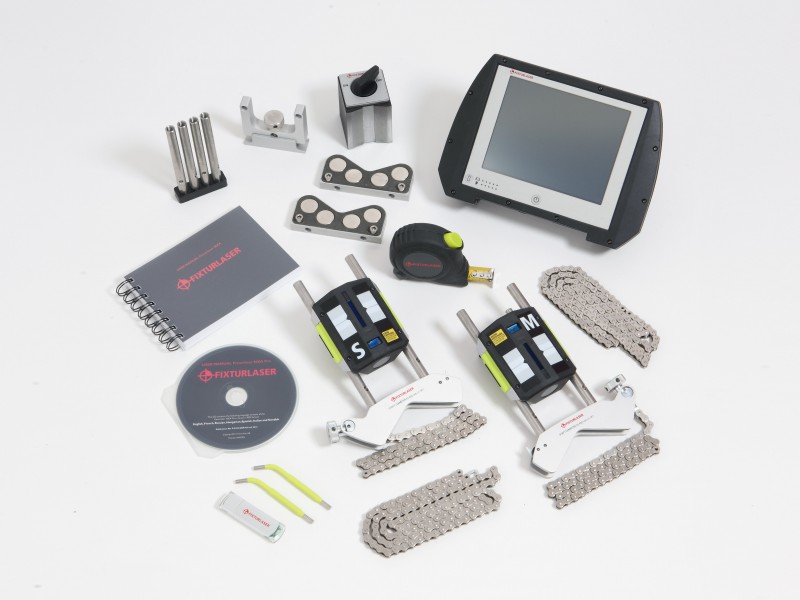

What’s Included
Full VGA 6.5″ color display, TFT-LCD backlit, sunlight readable, with wide angle viewing technology.
- M3 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- S3 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- NXA V brackets, including 4-150mm rods and 2-470mm chains
- Two 970mm extension chains
- Rod extension kit

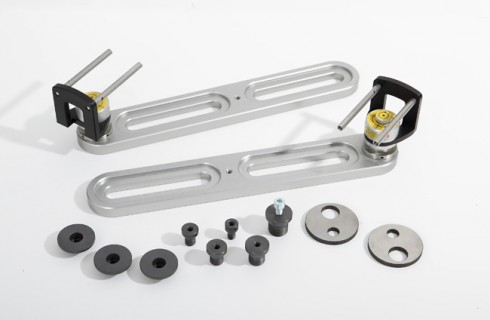

- NXA extension fixture
- Angled Universal Rod tools (2)
- Magnetic base for mounting on large diameter shafts
- Magnetic V-brackets (2) for applications where chain brackets won’t fit
- External power supply NXA built into carrying case

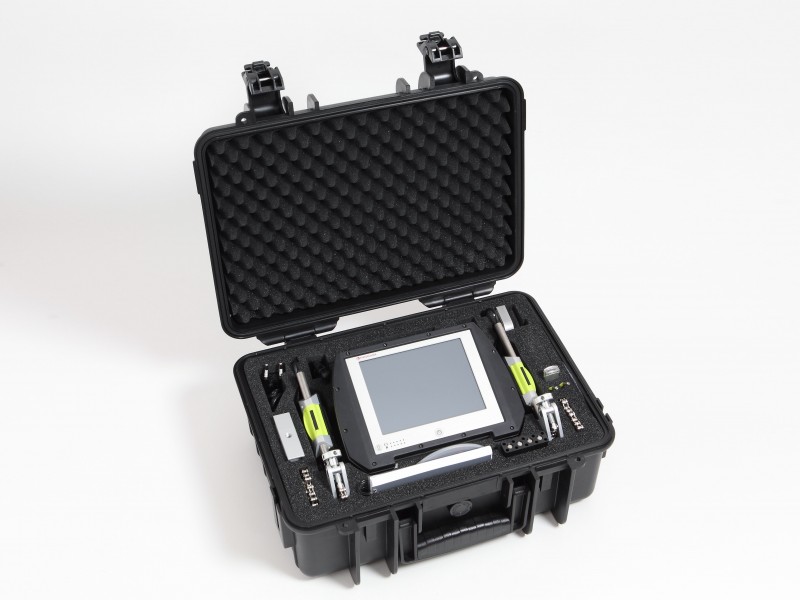

- Carrying case – IP-65, high impact ABS
- NXA tape measure
- USB stick
- Manuals – NXA
- Lifetime warranty standard
Expansion Kits
FIXTURLASER EVO
The evolution of laser shaft alignment towards simplicity and confidence continues with the Fixturlaser EVO.
Product Details

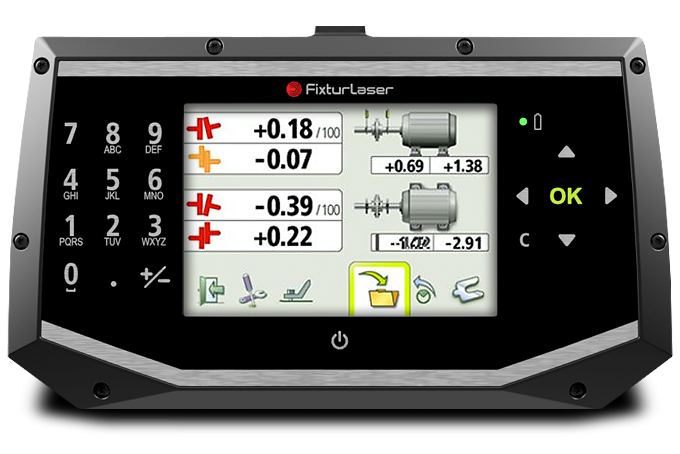

FIXTURLASER ECO
The Fixturlaser ECO is an affordable precision instrument created specifically for horizontal shaft alignment. In addition to providing Fixturlaser’s industry-leading ease-of-use, the ECO comes with wireless sensor units, a 4” color display, rechargeable batteries and an IP65-certified design that can withstand harsh environments.
Fixturlaser SMC
Like no other, the Fixturlaser SMC is a portable, machinery diagnostic tool that allows mechanics and maintenance technicians to check the health of any rotating machine, as needed, in a matter of minutes. It requires no special training or certification and generates straightforward, simple machine diagnostic reports with both confidence and severity levels.
