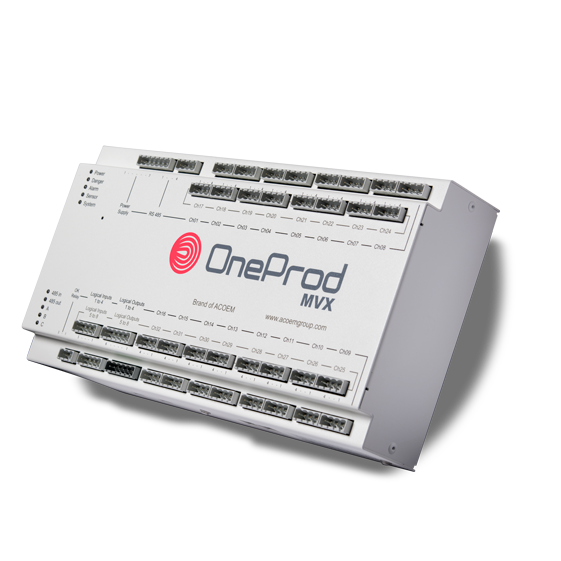

MVX Real-time monitoring system

ONEPROD MVX system is intended for continuous multi-channel monitoring solution for critical rotating equipment. The real time automatic analysis of vibration data helps preventing from any failure to happen. The evolution of the machine condition is monitored with unrivalled accuracy, so that faults can be detected at a very early stage. Welcome to predictive maintenance!

Key points

Innovative wireless measurement

improved user comfort

improved safety
new applications (enclosed machines, mobile machines, measurement behind protective casing)
patent pending

Smart

powerful methodology for the monitoring of variable and low speed machines
smart algorithms embedded
Shock Finder™ providing automatic shock detection on low speed rotating parts and gearboxes.

Multi-channel

cost effective setup for large number of measurement points: 8, 16, 24 or 32 measurement channels
Simultaneous acquisition on all channels for best diagnostic capabilities
IEPE sensor, AC voltage, DC voltage, 4-20 mA, pulses

Connected

Modbus (TCP, RS485), and OPC interfaces
inputs/outputs allowing to interact directly with the process
remote monitoring of isolated machines, even through 3G connection
easy connection to an API protection system to collect the signals and start predictive maintenance

Features

Slow shafts

The predictive maintenance of low speed rotating machines is more complex to implement. The machine condition is indeed more difficult to assess, as it requires high resolution data and advanced vibration analysis tools. Coupled to ONEPROD NEST platform, the ONEPROD MVX system offers the perfect solution:

the synchronous record of several rotations of low speed shafts (<10RPM) can be performed on up 32 channels and such enhance bearing fault detection with the analysis of both low and high frequency content.
the shocks resulting from low speed components are hidden in rich vibration signals and are very difficult to detect. Thanks to ONEPROD Shock Finder™, a smart algorithm developed on real applications, their detection is automatic and provides an early indication of fault on such low speed asset.
all analysis tools required are available: statistical analysis, band kurtosis, smart filters… All post processing indicators can be trended and help predict the evolution of the asset condition

Real time monitoring

Condition based maintenance advocates continuous monitoring of machinery at periodic intervals, using various vibration indicators. ONEPROD goes even further, as MVX offers the capacity to monitor indicators in real time, ensuring:

that no monitoring event will be missed (no gaps in data acquisition)
responsiveness at all times: the slightest anomaly is detected in real time
the ability to detect transient or spurious events
Pre-trigger functions enabling the raw signal from just prior to the event.

Monitoring of complex machines

On the edge of industry 4.0, recording data is not a problem any longer. But for machines operating according to variable process conditions, the difficulty is now to provide a solution able to capture the right data at the right time, to enable reliable analysis and predict failures. MVX performances enable the most complex machinery found in today’s industrial processes to be monitored:

Up to 10 operating conditions can defined using one or more process parameters
Data Acquisition strategy, Indicators and alarm thresholds are automatically adapted according to each operating condition
Stability parameters are set to make sure each measurement is done in good condition

Troubleshooting

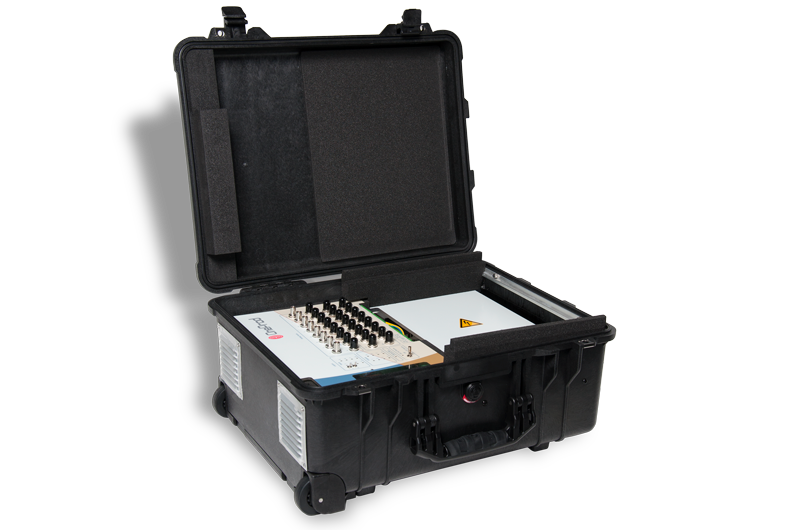

MVX system can be packaged in a transportable case with BNC plate for 8, 16, 24 or 32 channels to answer to a need of temporary monitoring:

IP54 rugged design, with integrated fan system and UPS
place to enclose a 15’’ laptop PC
dimensions: 560 x 465 x 265 mm (22.0 x 18.3 x 10.4 inches)
weight: 16 kg (30 lbs)

Externally powered, the monitoring case can remain closed even with a computer inside and right next to the equipment during a day, a week, a month… Ideal to run a full health assessment of the most complex machines, it offers the best measurement and signal processing capabilities for troubleshooting purposes.
