ULTRAPROBE® 3,000


Ultraprobe® 3000

Either for compressed air, leak detection, steam traps or electrical applications, the Ultraprobe® 3000 is your tool for energy conservations!

Here is a digital Ultraprobe® that’s versatile enough to cut energy waste and improve uptime while saving money, and improving the environment. The Ultraprobe® 3000 is a digital ultrasonic inspection, information, storage, and retrieval system that comfortably fits in the palm of your hand.

  • Find your leaks & report cost per leak with DMS reporting
  • Inspect for faulty steam traps
  • Inspect electrical systems for discharge problems
  • Troubleshoot bearing & mechanical problems

Why Choose this instrument?

  • Easy to use
  • Accurate & repeatable digital data with 400 storage points
  • Ideally for point & shoot trouble shooting & energy conservation programs
  • Comes with licence free data management software (DMS) to create yearly cost per leak reports!

On board data logging utilizing Ultratrend DMS™ providing:

  • Download leak data via USB connection
  • Manage your data, add comments & pictures
  • Export leakdata to leakreport in Excel

Features include:

  • Wide, dynamic sensitivity range
  • 400 memory locations on-board for your test data
  • “Spin and click” operations to customize inspection modes, store and view data and adjust instrument settings

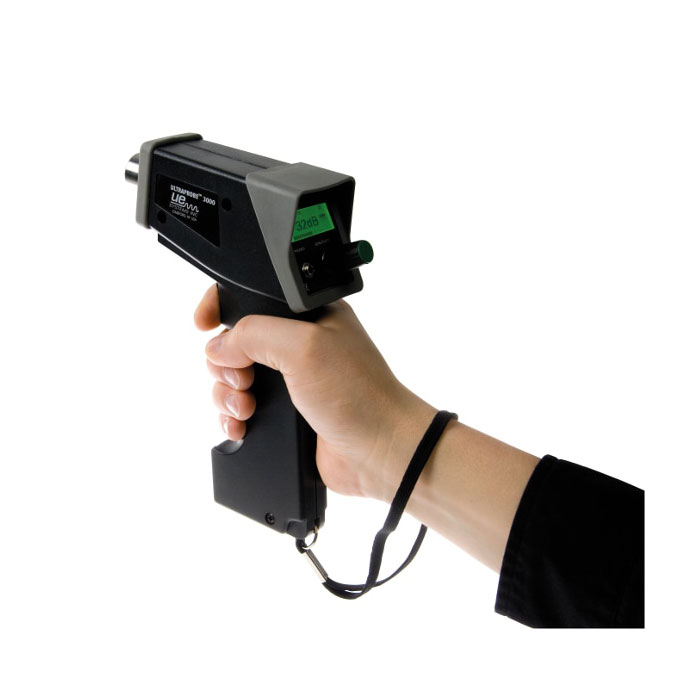

  • Lightweight pistol unit

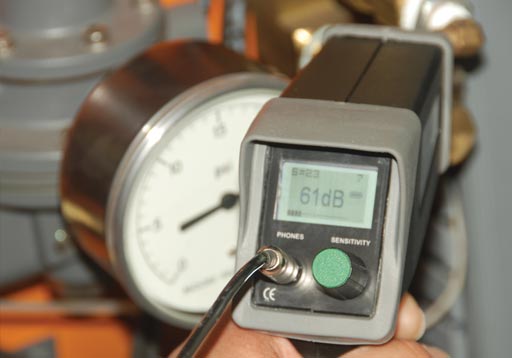

  • Easy-to-read display panel with calibrated decibel readout and a 16 segment bar graph. The display panel showcases sensitivity level, storage location number and battery level.

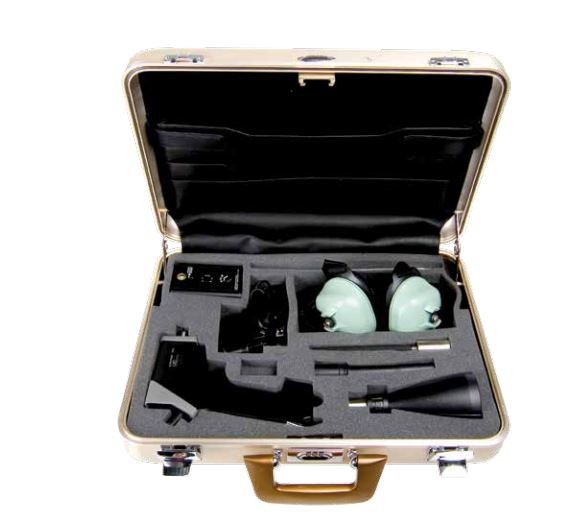

Complete Kit

Ultraprobe® 3000 LRM Ultrasonic Detection Kit

Complete with everything you need for digital route inspection, the Ultraprobe® 3000 LRM kit includes:

  • UP 3000 Pistol with Decibel Readout and 16 Segment Bar Graph Display Panel
  • “Spin and Click” Sensitivity/Control Dial
  • Scanning Module
  • Stethoscope (Contact) Module
  • Mini-USB I/O Port & Cable
  • Storage Entry
  • Recharge Jack
  • DHC-2HH-Heavyduty, Durable Headphones for Use With a Hard Hat
  • Zero Halliburton Carrying Case (Case specs may vary. Please contact us for details.)
  • Li Polymer Rechargeable Battery and Charger
  • Rubber Focusing Probe
  • Stethoscope Extension Kit (SLP-EXT)
  • Long Range Module

Technical Specs

Ultraprobe® 3000 Technical Specs

Standard specifications for the Ultraprobe® 3000 are as follows:

Construction: Hand-held pistol type made with ABS plastic
Circuitry: Solid state analog and SMD digital circuitry with temperature Compensation
Frequency Range: Frequency response: 35-45 kHz
Response Time: <10 milliseconds Display: 128×64 Graphic LED with LED backlight
Memory: 400 storage locations
Battery: Li Polymer Rechargeable
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Output(s): Calibrated heterodyned output, decibel (dB) frequency, USB data output
Available Probes: Scanning module and stethoscope (contact) module, long range module, RAS MT
Headset: Deluxe noise attenuating headphones. Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standards
Indicators: dB, battery status and 16 segment bar graph, sensitivity setting, record number
Threshold: 1 x 10-2 std. cc/sec to 1 x 10-3 std. cc/sec
Dimensions: Complete kit in Zero Halliburton aluminum carrying case 15″ x 22″ x 5″ (38.1 x 55.9 x 11.43 cm)
Weight: Pistol Unit: 1 lb (.45 kg); Carrying Case: 11 lbs (4.99 kg)
Warranty: 1 year standard, 5 years with completed registration form

Available Optional Accessories (Call, fax or e-mail for information)

  • Long Range Module doubles detection distance (LRM-3)
  • HTS Holster Set (HTS-3)
  • Telescoping Flexible Scanning Module (TFSM-3)

Specialized Air and Steam Tags Available.

Covered by one or more of the following patents: 4416145, EPO151115, 502674183.
Ultraprobe 3000 Kit: Meets and exceeds ASTM E1002-2005 requirements for Leak Detection.
