THE ALL NEW FIXTURLASER ECO

ITEM # P-0248

The Fixturlaser ECO is an affordable precision instrument created specifically for horizontal shaft alignment. In addition to providing Fixturlaser’s industry-leading ease-of-use, the ECO comes with wireless sensor units, a 4” color display, rechargeable batteries and an IP65-certified design that can withstand harsh environments.

SUMMARY

The simplest machine to perform Horizontal Shaft Alignment.

HIGHLIGHTS

  • Integrated Bluetooth
  • Pre-mounted Sensors
  • 4” Full-Color Screen
  • Integrated Verti-Zontal Software
  • Screen Flip
  • 8 hours of continuous-use battery time
  • CCD Sensor Technology
  • Lifetime warranty

Product Video

Applications

Horizontal Machines

The ECO measures the need for horizontal alignment, but its real power is in helping correct misalignment. The dual sensors allow the ECO to maintain the true position of the shafts, even as unintended movements are experienced during the alignment process. The benefit of this “true position sensing” is that it allows the user to complete the alignment using a Verti-Zontal™ move, adjusting in both the vertical and horizontal planes without re-measuring between moves. A Verti-Zontal™ alignment is a great time saver since alignments can usually be completed in just one or two tries.

The ECO also comes with utility software programs to make the alignment process easier. These include Softcheck™ to control for soft foot conditions and Target Values, which automatically adjusts the readings to compensate for pre-determined alignment targets based on thermal growth data.

Soft Check

Utilities

Vertizontal Moves
The adaptive user interface will guide you throughout the measurement and alignment process. We are especially proud of the function – VertiZontal Moves – where you only have to measure once before making the required vertical and horizontal adjustments.

The function – VertiZontal Moves – you only have to measure once before making the required vertical and horizontal adjustments. The VertiZontal moves is an innovative and time-saving features.
Affordability

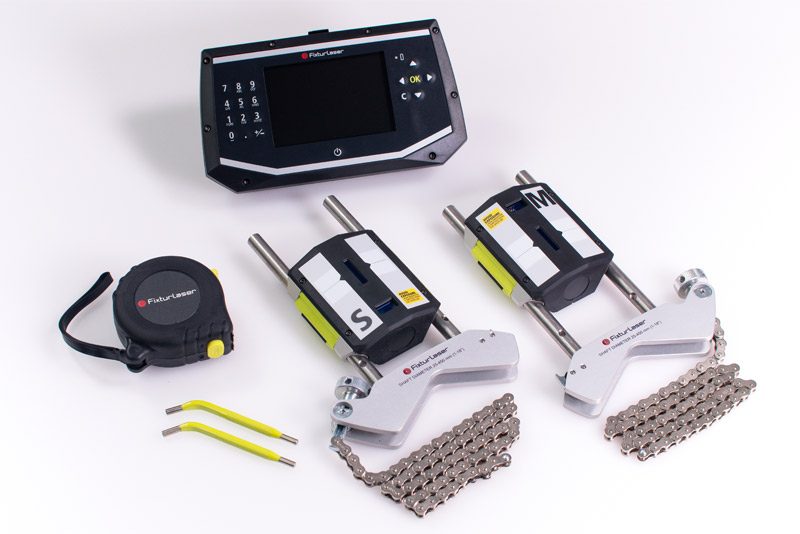

What’s Included

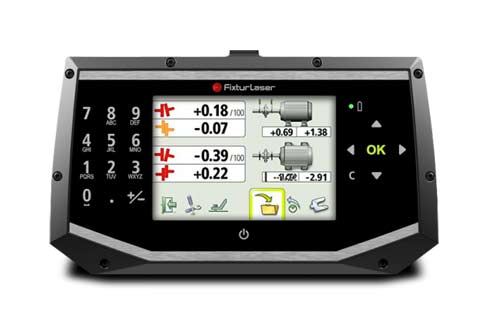

ECO Display Unit with 4” Color LCD Screen
  • Moveable machine transmitter/detector with 20 mm CCD sensor
  • Stationary machine transmitter/detector with 20 mm CCD sensor

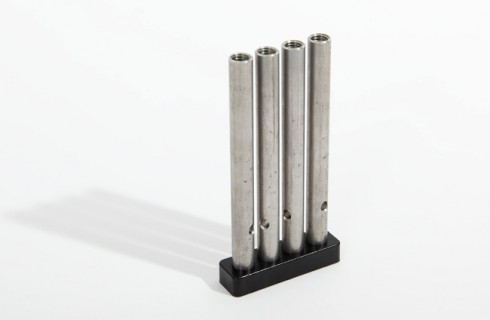

  • Rod tools (2)
  • 8mm wide, 970mm-Length Chain (2)
  • Tape measure (5m)
  • USB Cable A-micro B (.5m)
  • USB Cable A-micro B (1.5m)
  • Power Cable US (2m)

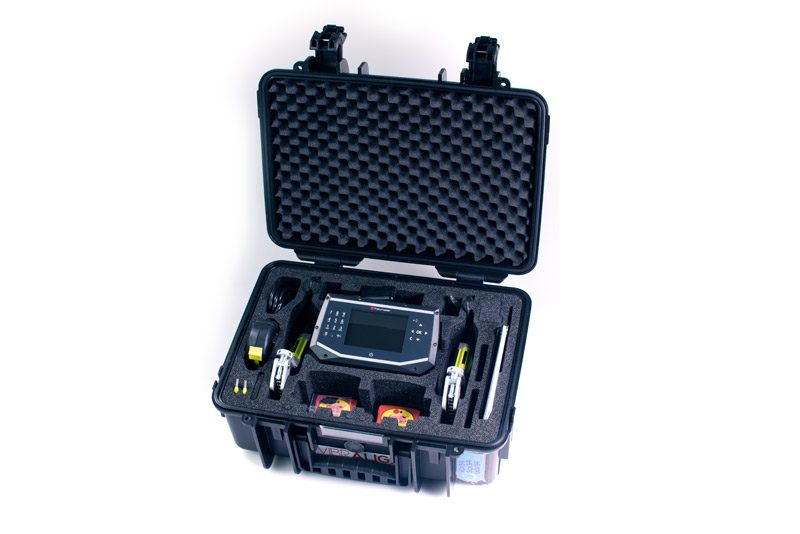

  • Carrying case – IP-65, high impact ABS
  • NXA tape measure
  • USB stick
  • Manuals – ECO (Printed & CD)
  • Lifetime warranty standard
