ULTRAPROBE® 100

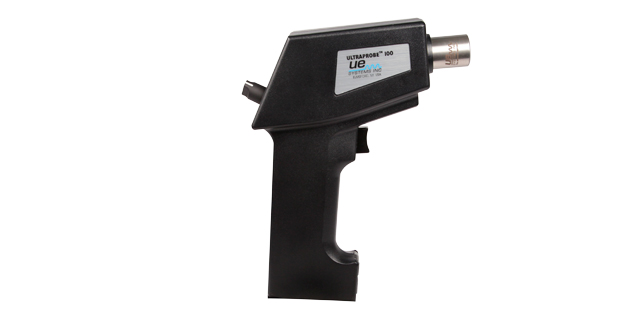

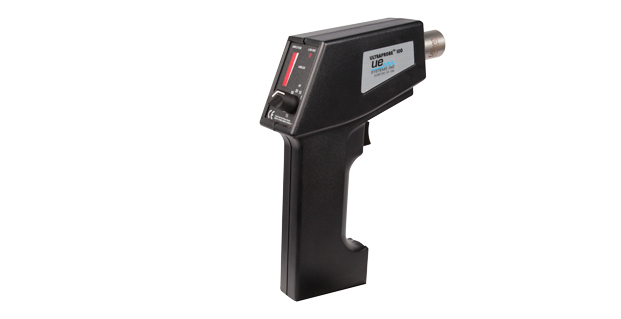

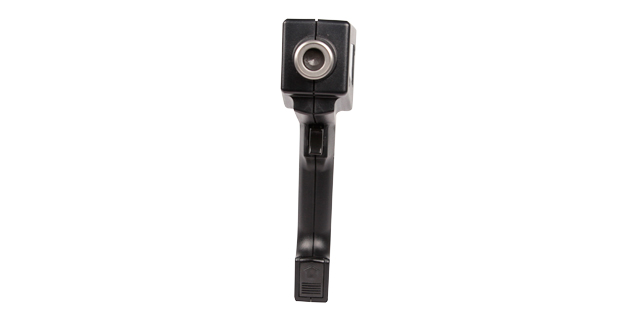

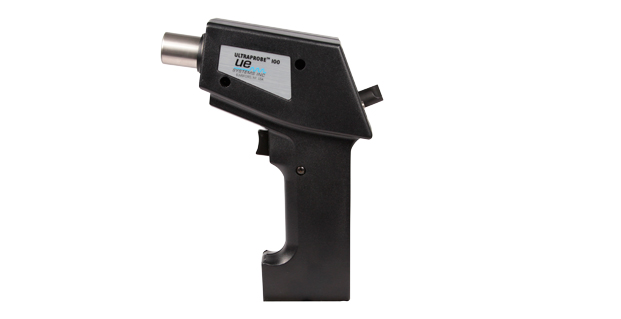

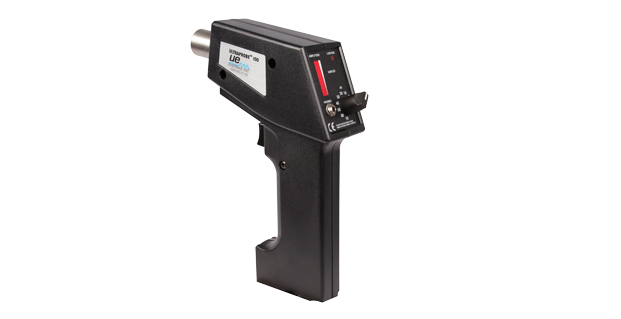

Ultraprobe® 100

The Ultraprobe® 100 is a practical tool for any leak detection, steam trap inspection or troubleshooting program.
Simple to use & cost effective!

Find compressed air and faulty steamtraps and prevent machinery failure.

Why Choose this instrument?

  • Easy to use
  • Best in class entry level Ultrasound instrument!
  • Comes with an universal interchangable 9V battery
  • Ideally for point & shoot trouble shooting

Ultrasound Technology is the smart approach to inspection:

  • Ultrasound is very directional and localized
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Changes in Ultrasound provide early warning of potential problems
  • Ultrasound instruments are easy to use!

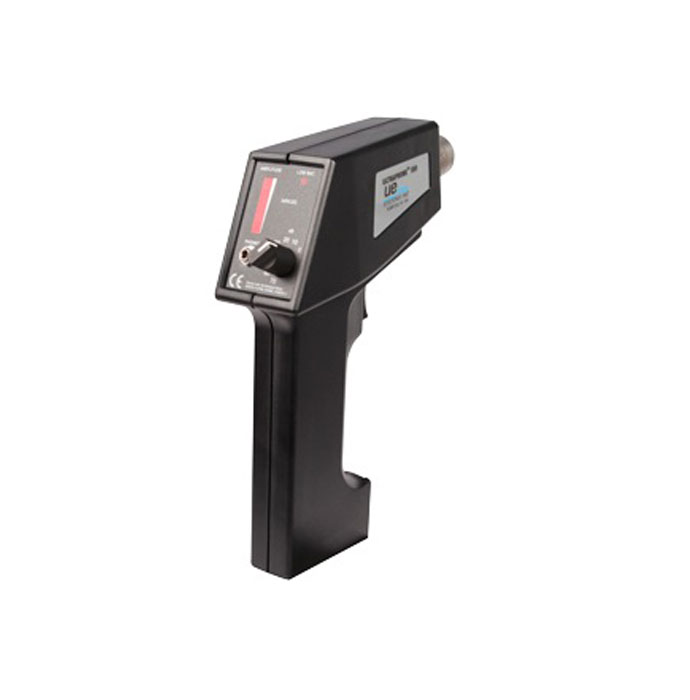

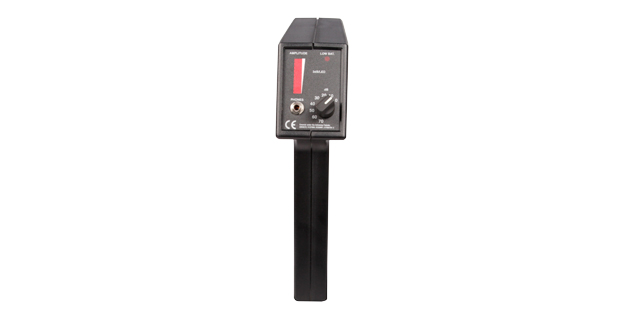

The Ultraprobe® 100 features an 8-position sensitivity dial with decibel indications. In addition, it features an LED bar graph display in which each LED equals approximately 3 dB for calculating decibel levels.


Complete Kit

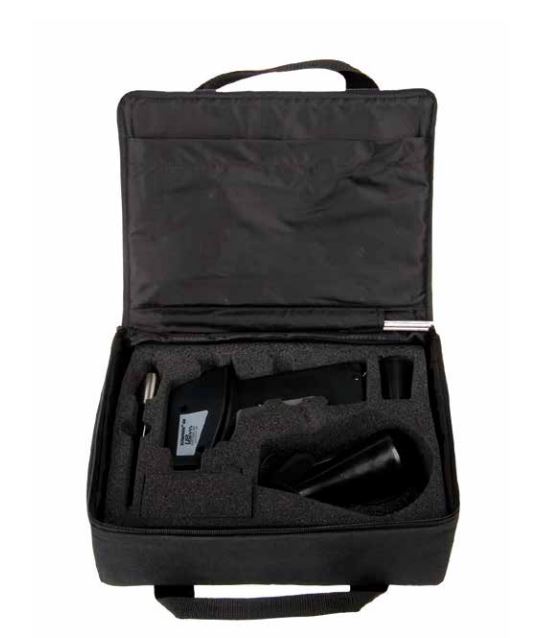

Ultraprobe® 100 Ultrasonic Detection Kit

It’s easy to find the right Ultraprobe 100 for your application

AVAILABLE KITS AND ORDERING INFORMATION

UP100KT: ULTRAPROBE 100 KIT

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, stethoscope module, warble tone generator with battery recharger, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100SC: ULTRAPROBE 100 STETHOSCOPE / SCANNER KIT

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, stethoscope module, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100STG: ULTRAPROBE 100 SCANNER / TONE GENERATOR KIT

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, warble tone generator with battery recharger, lightweight foam lined headset, 9 volt alkaline battery recharger (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100C: ULTRAPROBE 100 STETHOSCOPE KIT

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100S: ULTRAPROBE 100 SCANNER KIT

UP100 pistol housing with LED bar graph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

Technical Specs

Ultraprobe® 100 Technical Specifications

Standard specifications for the Ultraprobe® 100 are as follows:

Construction: Handheld ABS pistol type ultrasonic processor, stainless steel sensor enclosures

Circuitry: SMD/Solid State hybrid heterodyne receiver

Frequency Range: 35-45 kHz

Indicator: 10 segment LED bargraph (red)

Sensitivity Selection: 8 position precision attenuation

Power: 9 Volt Alkaline Battery

Low Battery Voltage Indicator: LED

Headset: Noise isolating type: double headset wired monophonic impedance; 16 ohms. Over 23 dB noise attenuation. Meets or exceeds ANSI specification and OSHA standards.

Probes:

Scanning Module (SCM-1) Stainless Steel Unisonic (single transducer) piezo electric crystal type; Stethoscope/Contact Module (STM-1) Stainless Steel plug-in type with 5.5″ Stainless Steel Waveguide.

Rubber Focusing Probe: Shields stray ultrasonic signals & focuses detected signals.

Transmitter: Patented warble tone transmission

Response Time: 300 m. sec.

Ambient Operating Temperature Range: 32°-120°F(0°-50°C)

Relative Humidity: 10-95% non condensing at up to 86°F(30°C)

Storage Temperature: 0°-130°F (-18°-54°C)

Warranty: One year, parts/labor. (Details available on request)

Dimensions: 5.25″ x 2″ x 8″ (13.3cm x 5cm x 20.3cm)

Weight: 11 oz (.3kg)



Product Video

Download Brochure

Download Falcon Brochure

Ultraprobe 100 PDF Manual

Ultraprobe 100 PDF Manual
